Hyundai 210-9 Hydraulic Crawler Excavator
This Hyundai 210-9 excavator adopts reinforced heavy-duty track frame, effectively resisting impact in mine and gravel sites, extending service life of the 22 ton crawler excavator’s walking system.
Intelligent energy-saving mode of Hyundai hydraulic digger automatically adjusts power output according to load, cutting fuel consumption by 12% for long-shift heavy construction excavator operations.
Spacious air suspension operator cabin of Hyundai 210-9 excavator comes with full sound insulation glass, lowering operation fatigue for drivers working this industrial crawler digger all day.
Centralized maintenance access design simplifies daily inspection of filters and hydraulic pipelines, greatly reducing repair downtime of this Hyundai heavy excavator.
Multi-mode hydraulic power control matches different working scenarios; users can switch digging, lifting or breaking mode in one click to boost efficiency of the 22 ton crawler excavator.
Global standard spare parts compatibility makes it easy to source replacement components for Hyundai hydraulic digger in all regions, solving supply troubles for heavy construction excavator fleet owners.
Product Description
Core Specifications
| Parameter Item | Specific Data |
|---|---|
| Model | Hyundai 210-9 Crawler Excavator |
| Operating Weight | 21,900 kg (22 Ton) |
| Standard Bucket Capacity | 0.92 m³ |
| Bucket Width | 1150 mm |
| Engine Brand & Model | Original Hyundai 6-Cylinder Diesel Engine |
| Rated Power | 110 kW / 148 HP |
| Main Hydraulic Working Pressure | 33 MPa |
| Main Pump Flow Rate | 2×220 L/min |
| Travel Speed (High/Low) | 5.4 / 3.2 km/h |
| Fuel Tank Volume | 320 L |
| Hydraulic Oil Tank Volume | 160 L |
| Maximum Digging Depth | 6,820 mm |
| Maximum Digging Radius | 10,180 mm |
| Maximum Lifting Height | 9,850 mm |
| Overall Dimension(L×W×H) | 9680 × 2990 × 3050 mm |
| Track Ground Contact Length | 3370 mm |
| Track Shoe Width | 600 mm |
| Max Climbing Capacity | 35° |
| Standard Digging Force | 142 kN |
Features & Advantages

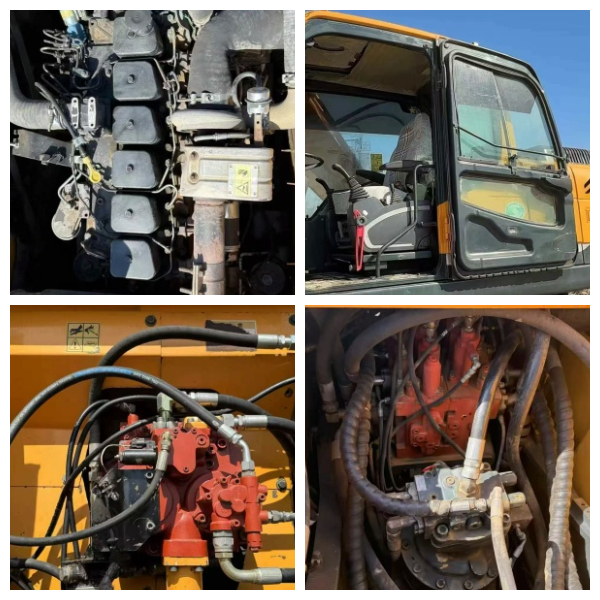

Original Hyundai High-Torque Diesel Power Unit
- This 22 ton crawler excavator adopts Hyundai 6-cylinder turbo engine, stable in cold dusty mines. Intelligent fuel injection and dust filter reduce consumption and cylinder wear; its power unit has 35% longer service life than ordinary industrial crawler digger, lowering maintenance cost of this Hyundai heavy excavator.
Optimized Load-Sensing Hydraulic System
- Dual load-sensing pumps maintain steady 33MPa pressure for long heavy work. Built-in heat dissipation avoids overheating downtime and reduces hydraulic component wear, cutting failure rates for rental fleets with multiple Hyundai hydraulic digger.
Reinforced Boom & Arm Structure
- Thick wear-resistant steel and full welding prevent deformation in mining sites. Replaceable bucket plates extend bucket life by 40%. This rugged Hyundai heavy excavator needs few repairs and brings higher investment return.
Ergonomic Operator Cabin
- Shock-absorbing seat eases operation fatigue; clear labeled controls simplify learning for new drivers. Full-view windshield eliminates blind spots, anti-slip pedals ensure safety on steep slopes, shortening training time for rental industrial crawler digger operators.
Multi-Mode Working Switch
- 4 one-switch modes fit digging, lifting, breaking and economy work. Reserved hydraulic pipelines support various attachments without refitting. High scene adaptability improves utilization rate of this 22 ton crawler excavator over single-function heavy construction excavator.
Application Scenarios
Mining & Quarry Operation
This 22 ton crawler excavator completes ore excavation, stone loading and stockpile sorting; the reinforced boom makes Hyundai hydraulic digger the standard heavy construction excavator for small and medium mines.
Highway & Municipal Road Construction
Hyundai 210-9 excavator handles road foundation trenching, slope shaping and old pavement breaking, widely adopted as reliable Hyundai heavy excavator by municipal engineering contractors.
Building Demolition & Site Clearance
Powerful digging force of this industrial crawler digger speeds up old building demolition, construction waste loading and site leveling for urban renovation projects.
Large Farm & Land Reclamation
The heavy lifting capacity of Hyundai 210-9 excavator supports farmland consolidation, water channel digging and large tree transplanting for agricultural land transformation jobs.
Rental Machinery Business
Balanced fuel consumption and multi-attachment compatibility make this 22 ton crawler excavator high-turnover rental equipment; global machinery rental merchants highly recognize Hyundai hydraulic digger as core heavy construction excavator fleet model.
Port & Yard Material Handling
Stable lifting performance of Hyundai heavy excavator assists bulk cargo stacking and loading at inland yards and small port terminals.
Packaging & Shipping
Shipping Arrangement

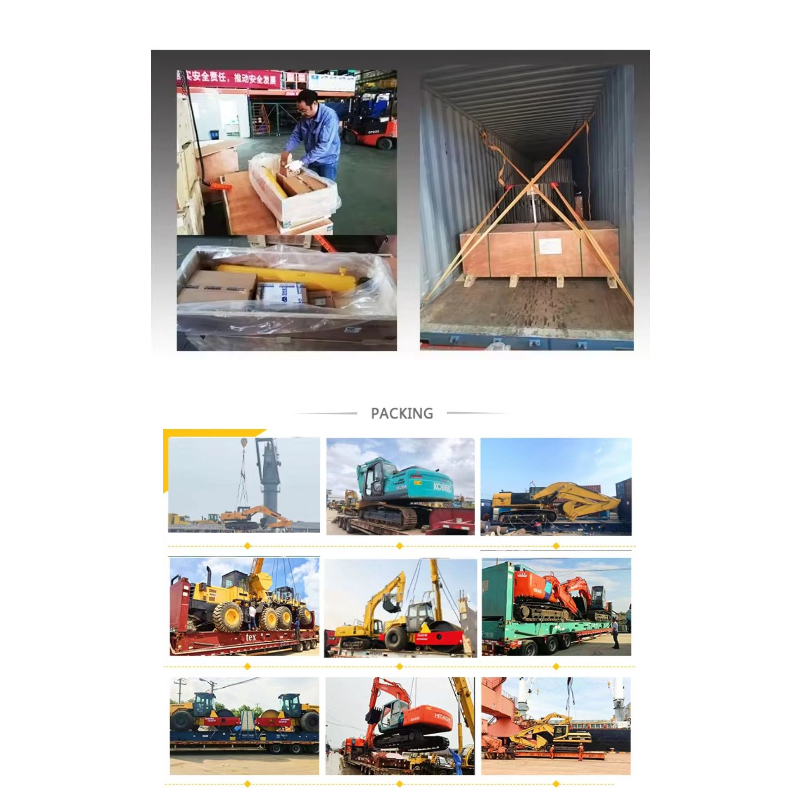

H3.1 Pre-shipment Anti-Corrosion & Anti-Scratch Packing
- We fully pack the 22-ton Hyundai 210-9 excavator before shipment. Hydraulic joints are fitted with rustproof caps. Cabin glass, control panels and seats are wrapped in bubble film and tarpaulin to resist seawater corrosion. Buckets and breaker hoses are secured with steel straps. Loose spare parts are packed in waterproof cartons and stored on the machine.
Three Transport Modes
Flatbed truck land transport
Dismantle counterweight and arm for short-distance domestic transport.
40HQ container sea freight
Key disassembled parts go into 40HQ containers, fixed with wires and wooden blocks to prevent sliding at sea.
Ro-ro ship for bulk orders
Whole machines roll onto vessels, cutting loading time for bulk purchases.
Tracking & Customs Clearance Service
- We partner with top forwarders for real-time tracking via tracking numbers. Our team provides full customs documents to help buyers clear goods smoothly at destination ports.
Company Strength
Stable Supply & Ample Stock
- Long-term authorized cooperation with Hyundai original parts suppliers offers brand-new Hyundai 210-9 at factory prices with genuine spare parts.Our 8,000㎡ Jinan warehouse keeps abundant 18–30 ton excavators in stock, fulfilling bulk orders within 10 working days. Machines, hydraulic attachments and spare parts are stored in separate zones.
Extensive Export Experience & Full Certifications
- 9 years of machinery export experience, shipping excavators to over 45 countries worldwide.Complete credentials: ISO, CE, EPA and full customs documents. Each shipment provides invoice, packing list and certificate of origin for easy destination clearance.
Custom Pre-sales & 24/7 Global After-sales Support
- Engineers tailor excavator configurations and attachments based on working conditions. Free digital manuals and online operation training are provided.Round-the-clock spare parts supply and remote video troubleshooting reduce equipment downtime.
One-stop Full-range Machinery Sourcing
Customer Testimonials
Africa Mining Company Bulk Purchase Hyundai 210-9 Excavator
A large mining contractor from Ghana purchased 8 units of Hyundai 210-9 excavator from Jinan Tui Wa Import And Export Trading Company in 2025, used as core 22 ton crawler excavator for local gold ore excavation and stone loading work.Customer Feedback:
“We compared multiple brands of heavy construction excavator before purchase, and Hyundai hydraulic digger shows the most stable hydraulic system under continuous mine heavy-load work. The reinforced boom of Hyundai heavy excavator does not deform after one year of rock digging, and fuel consumption is far lower than old second-hand industrial crawler digger we rented before. The after-sales spare parts response speed of Jinan Tui Wa Import And Export Trading Company is very fast, our whole Hyundai 210-9 excavator fleet has no long production downtime since delivery, we will place another bulk order of 12 units next year.”European Municipal Engineering Team Single Batch Order For Road Construction
A Germany municipal road engineering firm bought 3 Hyundai 210-9 excavator units for highway foundation trenching and pavement demolition work across small towns.Customer Feedback:
“This 22 ton crawler excavator fits all our municipal construction demands perfectly. Multi-mode power switch of Hyundai hydraulic digger lets us switch between digging and breaking quickly on one site. The quiet sound insulation cabin greatly improves driver comfort during all-day road work. Complete CE certificates of Hyundai heavy excavator help us finish local construction equipment registration in 3 days only, Jinan Tui Wa Import And Export Trading Company is our reliable long-term supplier for industrial crawler digger and heavy construction excavator.”Southeast Asia Land Reclamation Enterprise Long-term Cooperative Purchase
A Thailand land transformation enterprise signed annual supply cooperation with our company, regularly purchasing batches of Hyundai 210-9 excavator for farm consolidation and water conservancy channel digging projects.Customer Feedback:
“The Hyundai 210-9 excavator has strong climbing ability to adapt to sloped farmland, and the large bucket capacity of this 22 ton crawler excavator raises our daily soil leveling efficiency by 30%. Spare parts supply channel from Jinan Tui Wa Import And Export Trading Company covers local Thai ports, we can receive replacement parts for Hyundai hydraulic digger within 5 working days. The whole Hyundai heavy excavator machine is easy to maintain, our on-site mechanics can finish daily inspection without professional factory technicians, highly cost-effective industrial crawler digger for large farm and water conservancy heavy construction excavator projects.”
